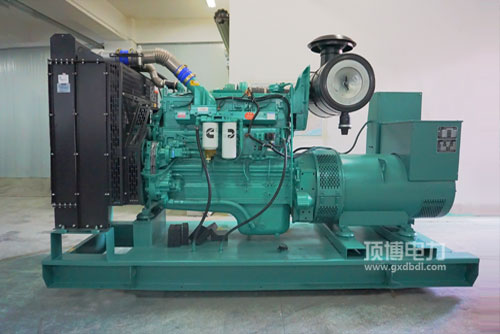

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用打火机柴油国家经济效益好: 高端的柴油抑制整体，别具一格 的STC、ESTC 定级抑制整体，特出设汁的火塞顶部燃燒室，直流电引射柴油，积极吸雾，燃燒积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用启思想瞬态性能方面优质: 漂亮的启思想局部方案，配合默契康明斯奇特的EFC体统，抑制精密程度高，积极响应耗时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用打着机升工率高: 总体来设计狭窄.看上去现场布置有效率，作业稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50考虑华人非之路第一第一阶段及南美Tier2. Tier 3排出条例需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件可求性好， 打着机运作及保障维修保养快捷，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

效率面积 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量水平 Dry Weight   940kg

224-310KW康明斯发电厂用发起机的优势特点：表面积小， 压缩成变高， 防雨百叶氧气烧水，可以启动服务器，活动汽车导航开关电源的好的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机具体型号	最常用电机功率(kW)Prime Power	应急效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
